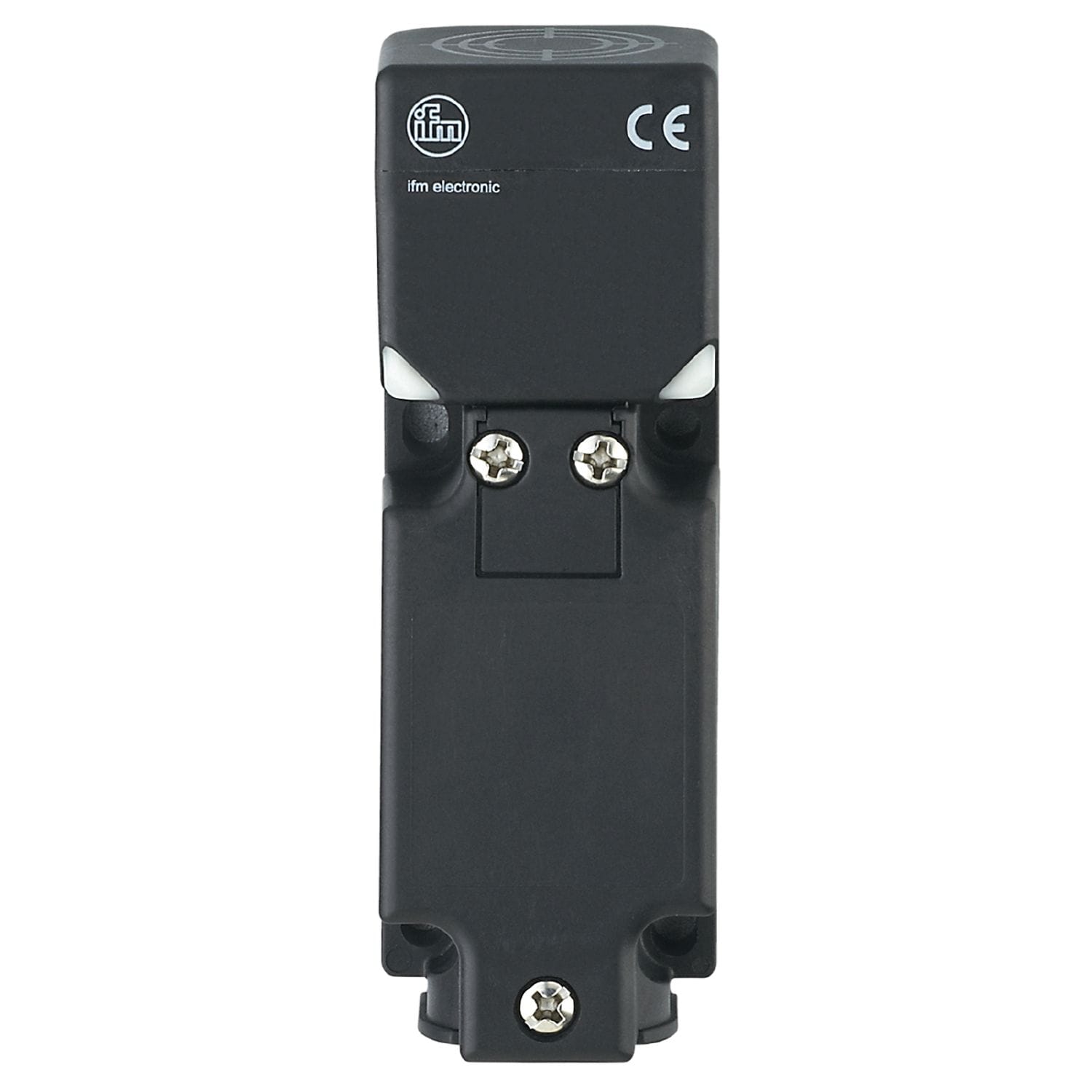

Inductive sensor IV5058
IVE4020ZCPKG
- Five positions of the sensing face selectable
- Long sensing range for high uptime
- Robust housing for use in harsh industrial environments
- For use in materials handling
- LED display to check switching status and operation
Description
Inductive Sensor IV5058 (Industrial Proximity Sensor – 20mm Range)
The IV5058 inductive sensor is a high-performance industrial proximity sensor designed for reliable non-contact detection of metallic objects in automation systems. Engineered with a 20 mm sensing range and robust rectangular housing, it ensures accurate and stable detection even in harsh industrial environments.
Product characteristics
| Electrical design | PNP |
| Output function | complementary |
| Sensing range[mm] | 20 |
| Housing | rectangular |
| Dimensions[mm] | 40 x 40 x 118 |
Electrical data
| Operating voltage[V] | 10…30 DC |
| Current consumption[mA] | 20; (24 V) |
| Protection class | II |
| Reverse polarity protection | yes |
Outputs
| Electrical design | PNP |
| Output function | complementary |
| Max. voltage drop switching output DC[V] | 2 |
| Permanent current rating of switching output DC[mA] | 200 |
| Switching frequency DC[Hz] | 300 |
| Short-circuit protection | yes |
| Type of short-circuit protection | pulsed |
| Overload protection | yes |
Detection zone
| Sensing range[mm] | 20 |
| Real sensing range Sr[mm] | 20 ± 10 % |
| Operating distance[mm] | 0…16.2 |
Accuracy / deviations
| Correction factor | steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminum: 0.3 / copper: 0.3 |
| Hysteresis[% of Sr] | 1…10 |
| Switch point drift[% of Sr] | -10…10 |
Operating conditions
| Ambient temperature[°C] | -25…100 |
| Protection | IP 68; IP 69K |
Mechanical data
| Weight[g] | 250 |
| Housing | rectangular |
| Mounting | flush mountable |
| Dimensions[mm] | 40 x 40 x 118 |
| Materials | PA 6.6; diecast zinc epoxy coated; sensing face: PA 6.6; LED window: PA; screws: stainless steel stainless steel (303/1.4305) |
Displays / operating elements
| Display |
|
Remarks
| Remarks |
| ||
| Pack quantity | 1 pcs. |
Electrical connection
| terminals | …2.5 mm²; Cable gland: M20 X 1.5 |
