Ultrasonic Thickness Gauge GM100

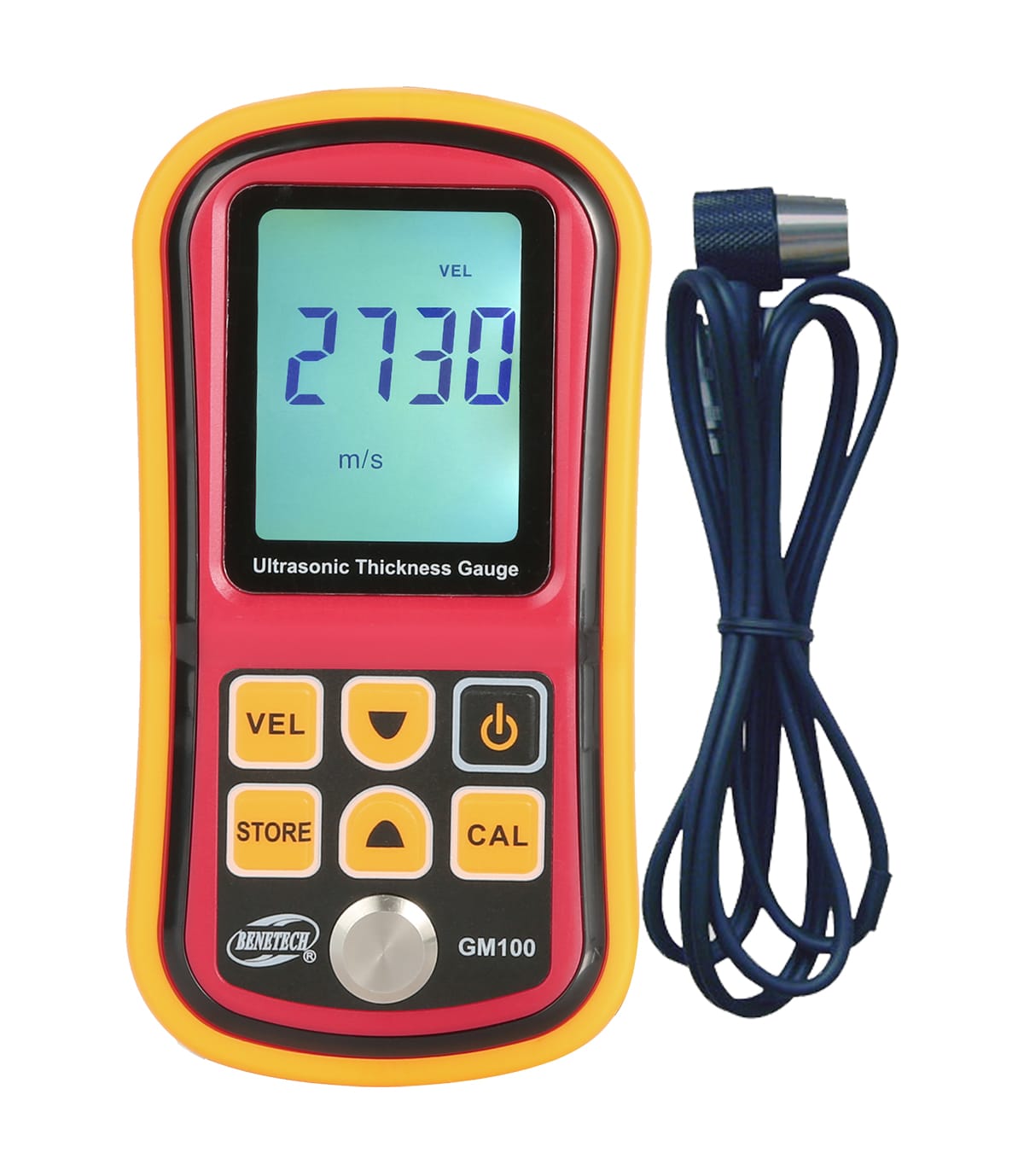

Ultrasonic Thickness Gauge GM100 (Digital Metal Thickness Tester)

The GM100 ultrasonic thickness gauge is a high-precision digital instrument designed for non-destructive thickness measurement (NDT) of industrial materials. Using ultrasonic wave technology, it accurately measures the thickness of metals, plastics, ceramics, and other solid materials without causing any damage.

This handheld device is widely used for inspection, maintenance, and quality control in industrial environments where material integrity and safety are critical.

Specifications

• Display mode: four-digit LCD display
• Display minimum unit: 0.1mm
• Working frequency: 5MHz
• Measuring range: 1.2～225.0mm (steel)
• Pipe measurement lower limit: Φ20x3mm (steel)
• Measurement error: ±(1%H+0.1)mm.H is the actual thickness of the measured object
• Sound speed adjustment range: 1000～9999m/s
• Inverse sound velocity with known thickness:
• Measuring range 1000～9999m/s, when the thickness of the test block is less than 20mm, the speed of sound is measured
• Accuracy is ±1%; when the thickness of the test block is> 20mm, the accuracy of sound velocity measurement is ±5%
• Operating temperature range: 0～40℃
• Power supply: three 1.5V AAA alkaline batteries
• Working current: normal test ≤50mA; open LED backlight ≤120mA;
• Static current≤20uA;
• Dimensions: 72x146x29mm
• Product weight: 202G

Features

Ultrasonic Thickness Gauge possesses the following features:

1. Data storage/deletion
2. Measuring sound velocity
3. LCD backlight display
4. Low battery reminder
5. Automatic shut-down

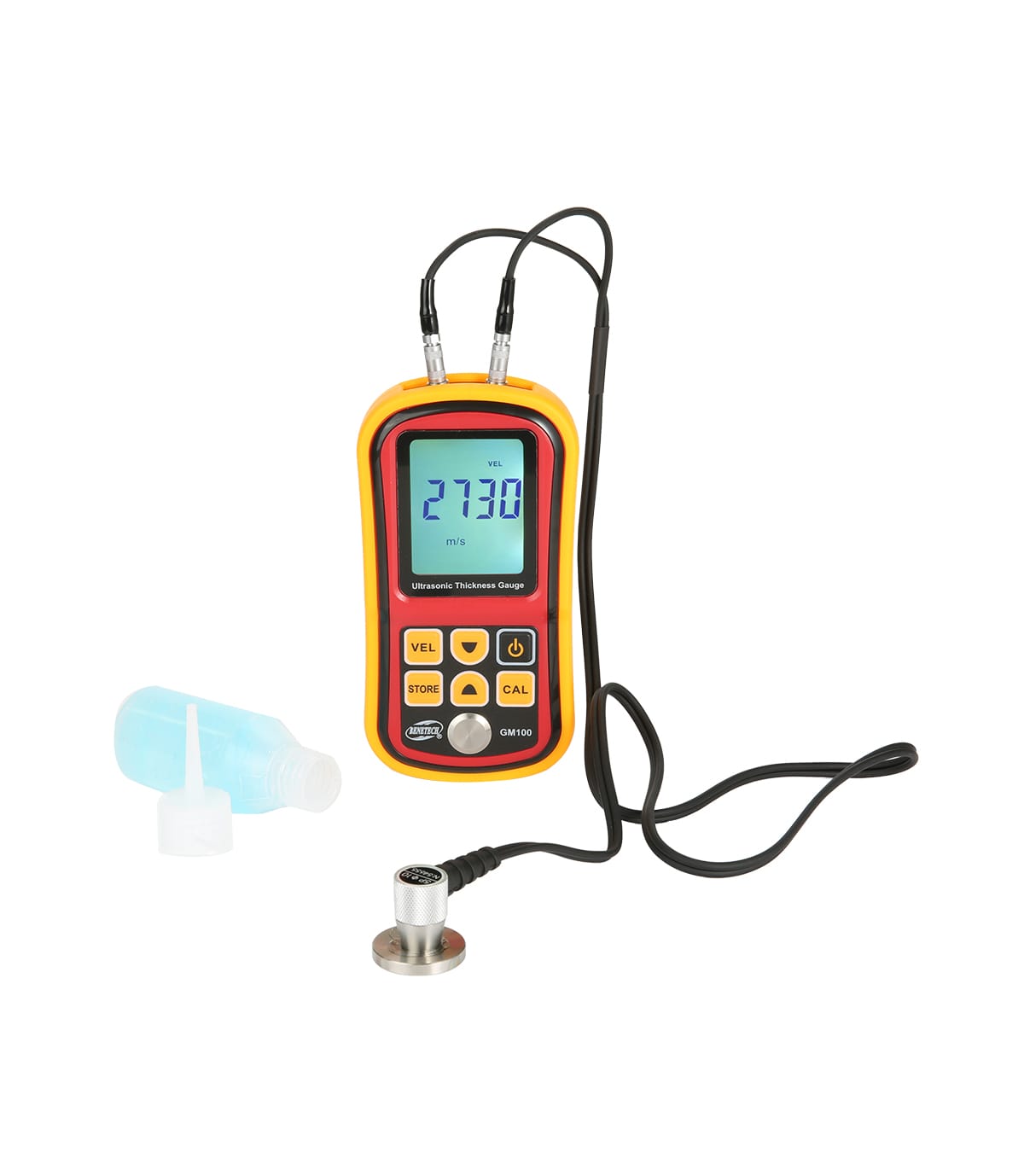

Accessories

• 1 host;
• Probe: 1 standard (Φ10mm 5MHz),
  Optional 1 (Φ10mm 2.5MHz);
• 1 bottle of coupling agent (50ml);
• 1 4mm calibration block
• 1 leather case.
